IEC 60947-7-1 Rated Data

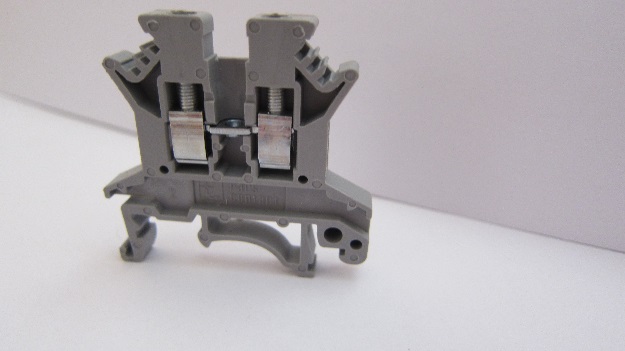

UK2.5

Voltage (V)/Impulse Voltage (kV)

500/6

Pollution degree/Voltage category/Material group

3/III/I

Current (A)

24

Cross-section(mm²)

2.5

Dimensions (mm)

Width/Length

6.4/45.6

Height,G32/TH 35-7.5/TH 35-15

51.3/47.4/54.9

Connection capacity

Solid (mm²)

0.5-4

Multi Stranded (mm²)

0.5-4

Flexible (mm²)

0.5-2.5

American Wire Gauge (AWG)

20-12

IEC test gauge

A4

Stripping length( mm)

12

Clamping screw

M3

Tightening torque (N.m)

0.5

Insulation material

PA 6.6
