IEC 60947-7-1 Rated Data

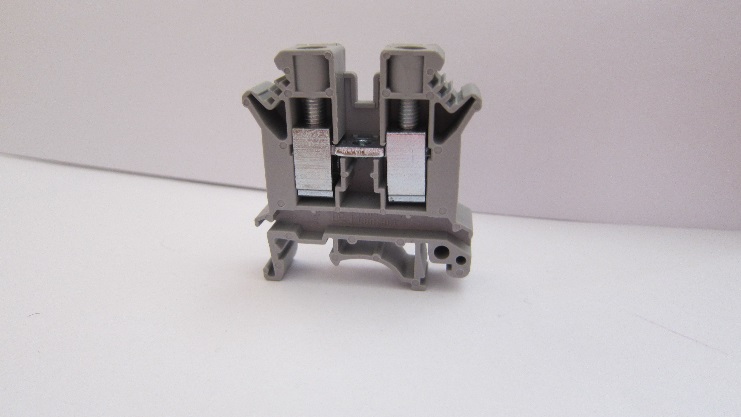

UK10

Voltage (V)/Impulse Voltage (kV)

800/8

Pollution degree/Voltage category/Material group

3/III/I

Current (A)

57

Cross-section(mm²)

10

Dimensions (mm)

Width/Length

6.4/45.6

Height,G32/TH 35-7.5/TH 35-15

51.3/47.4/54.9

Connection capacity

Solid (mm²)

0.5-16

Multi Stranded (mm²)

0.5-16

Flexible (mm²)

0.5-10

American Wire Gauge (AWG)

20-6

IEC test gauge

B6

Stripping length( mm)

12

Clamping screw

M4

Tightening torque (N.m)

1.5

Insulation material

PA 6.6
